CasePilot Returns | Shopify App Case Study

The problem

Routine returns can be automated. Exceptions still need an owner.

Shopify supports standard return requests, exchanges and refunds. There is also evidence that despite automation from notorious returns apps, the nature of ecommerce returns still leaves manual work, and that work can span multiple systems and teams, requiring ownership, judgment and coordination.

Shopify itself notes that returns can belong to several teams at once, including customer experience, operations, warehouse, finance and fraud.

Shopify, A Retailer's Guide to Returns Management Software, 2026

11.4%
of return value was flagged as high risk across more than 4,000 Shopify merchants.
Source: Loop, 2026
Multiple teams
can participate in one return: customer experience, ecommerce, operations, logistics, warehouse, finance and fraud.
Source: Shopify, 2026
Manual decisions remain
Shopify displays return fees, but merchants must manually deduct applicable fees when issuing a refund.
Source: Shopify Help Center

Loop's dataset covers 23.4 million returns submitted to more than 4,000 Shopify merchants between November 2024 and October 2025.

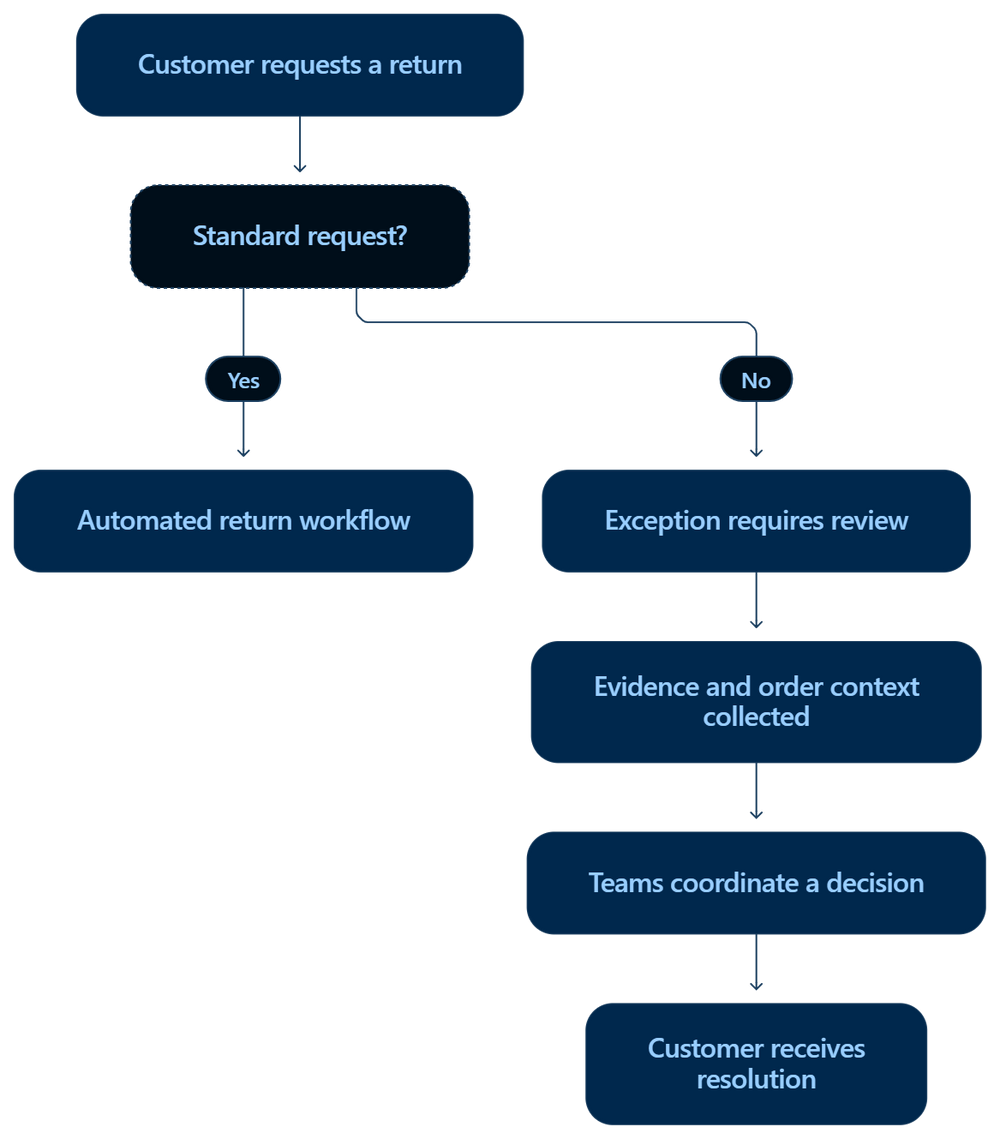

Where the workflow breaks

What happens when a return doesn't fit the rules?

The return itself is visible. Responsibility for moving the exception forward is not always as clear.

35 hours/week

spent manually managing returns

Shopify merchant Marc Nolan described handling returns through phone, email, text, social channels and spreadsheets, without centralized tracking or analytics.

After introducing a centralized return workflow, the company reported reducing the work from approximately 35 hours to one hour.

Source: AfterShip merchant case study

Named merchant case study; measurement period was not disclosed by the publisher.

The opportunity was not to replace Shopify's standard return functionality. It was to create a collaborative case-management layer for the requests that require human review.

How I approached the solution

The product

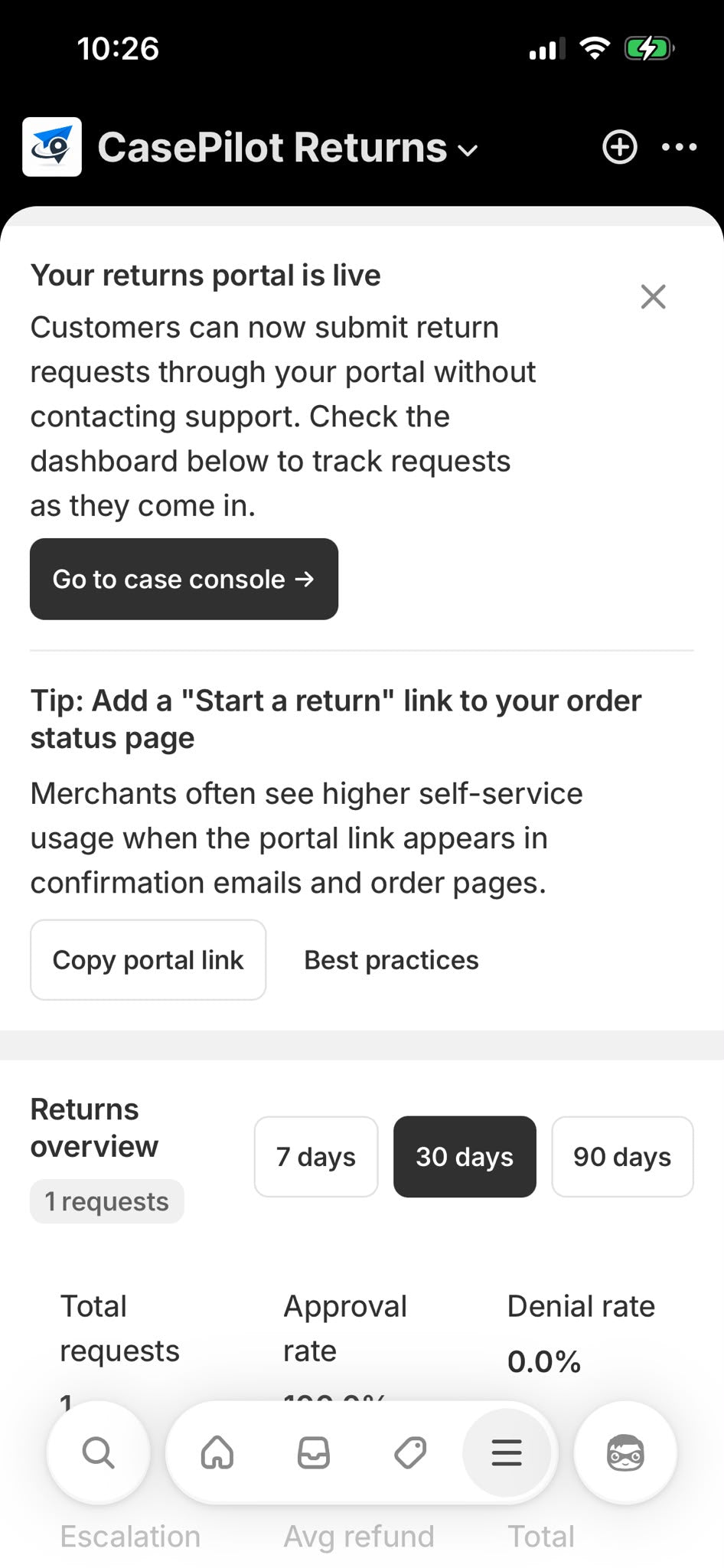

A shared workspace for returns that need attention

CasePilot brings return context, team ownership, and tasks together to help merchants move complex returns toward resolution.

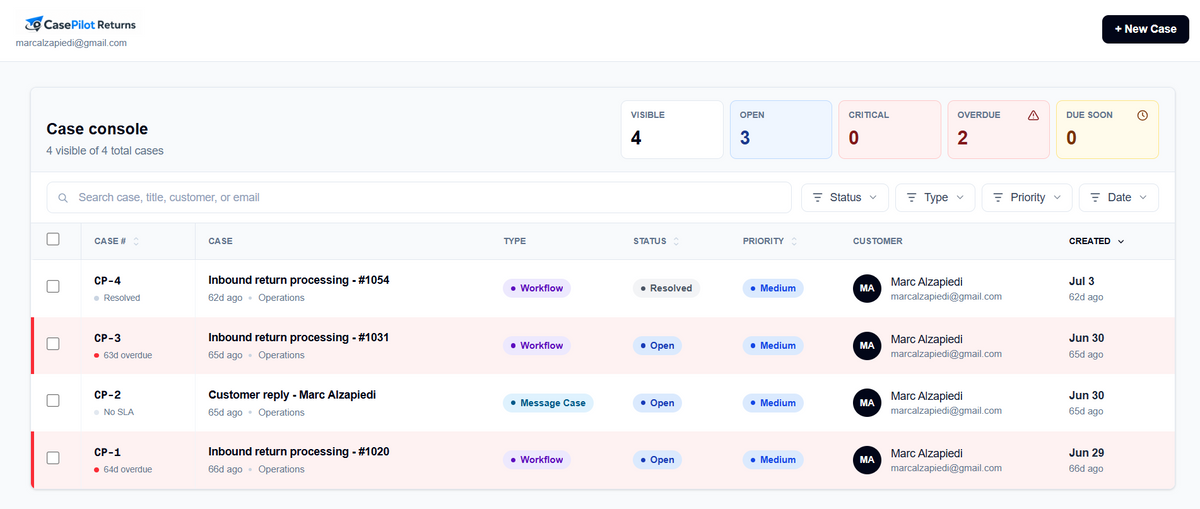

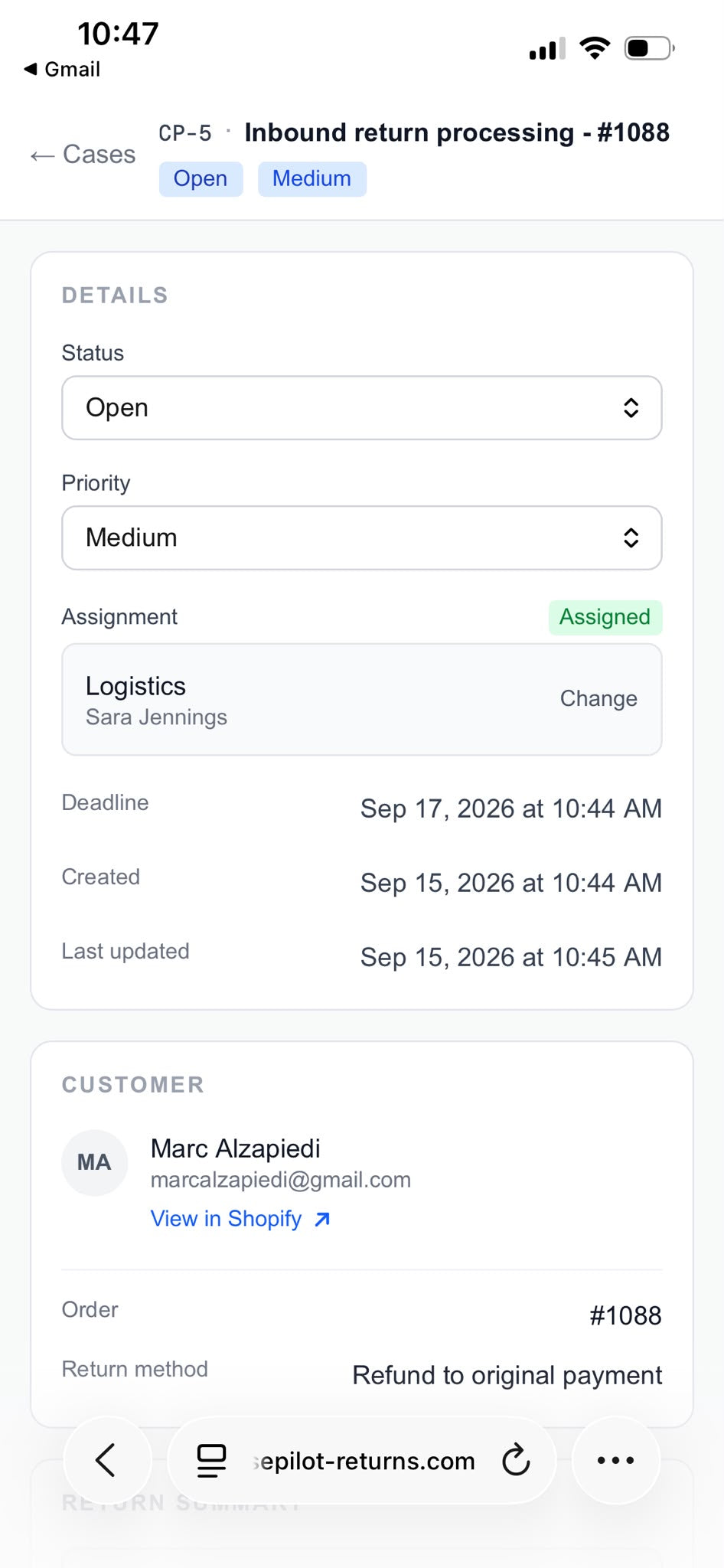

01 / Manage the work behind the return

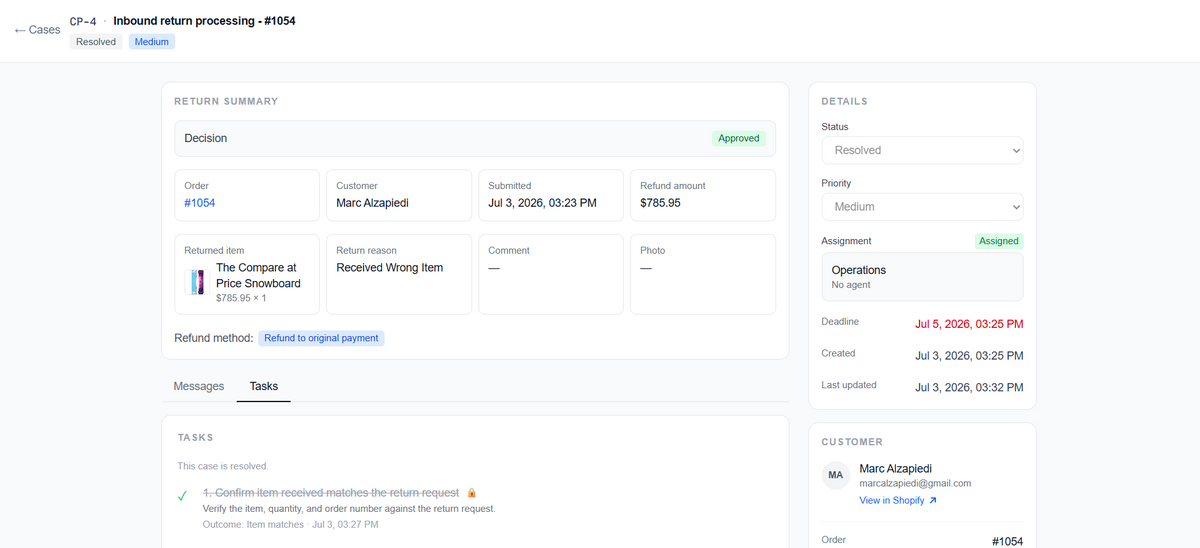

Return context
All data and files pertaining to a return in one place to be viewed by everyone.
Clear responsibility
A team assigned to handle the case based on merchant settings
Actionable tasks
The next steps needed to resolve the return anomaly, based on business workflows.

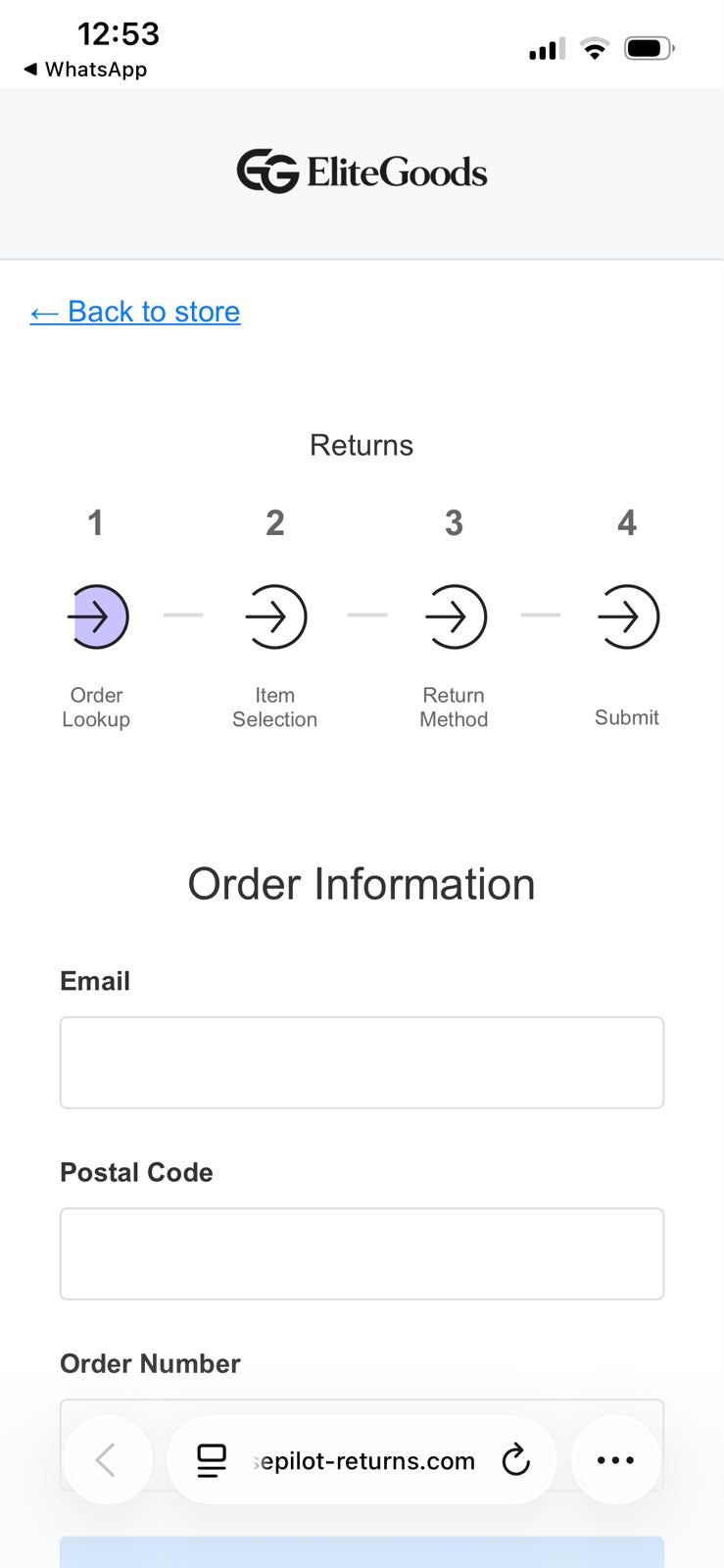

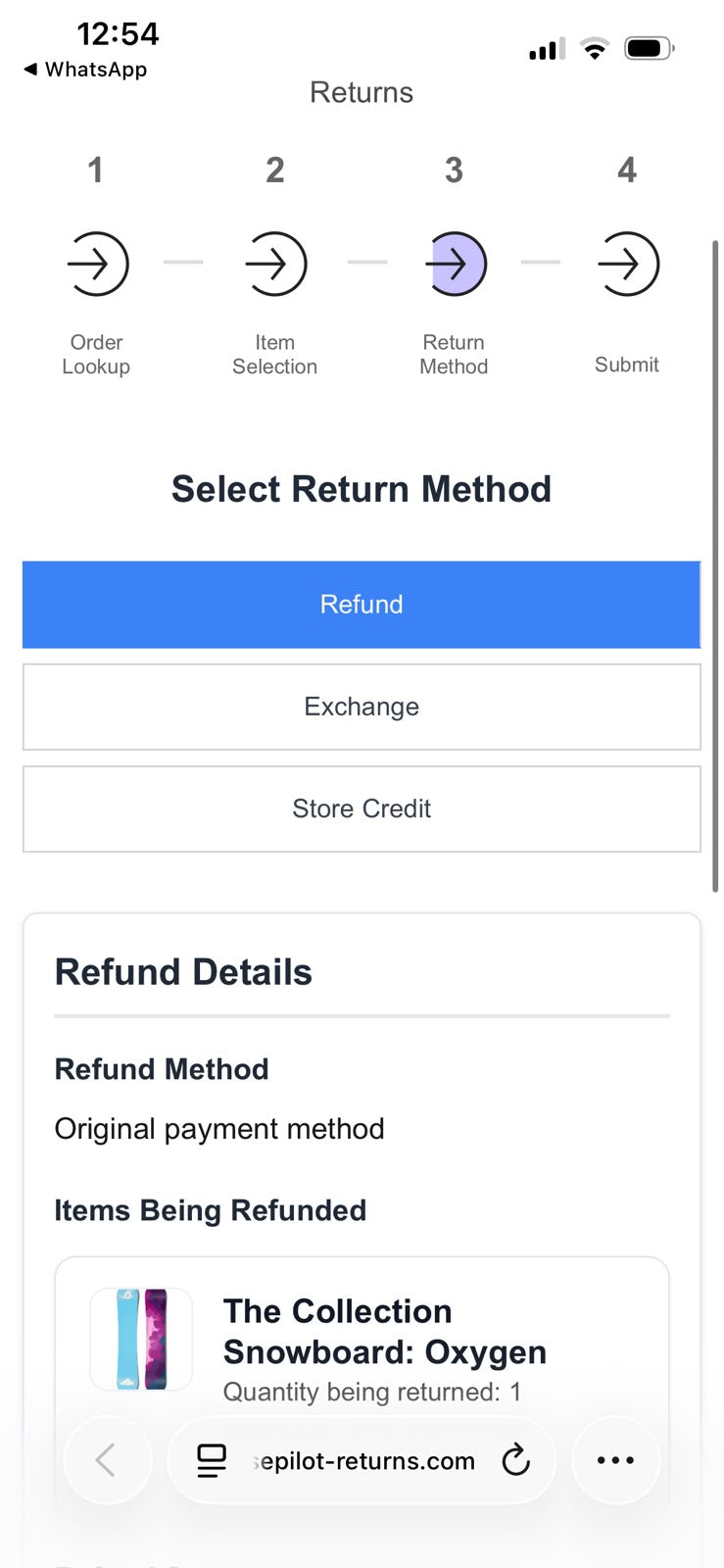

02 / Customer portal

Guide customers through their request

Customers select their items, explain the issue, and request a resolution through a guided return journey.

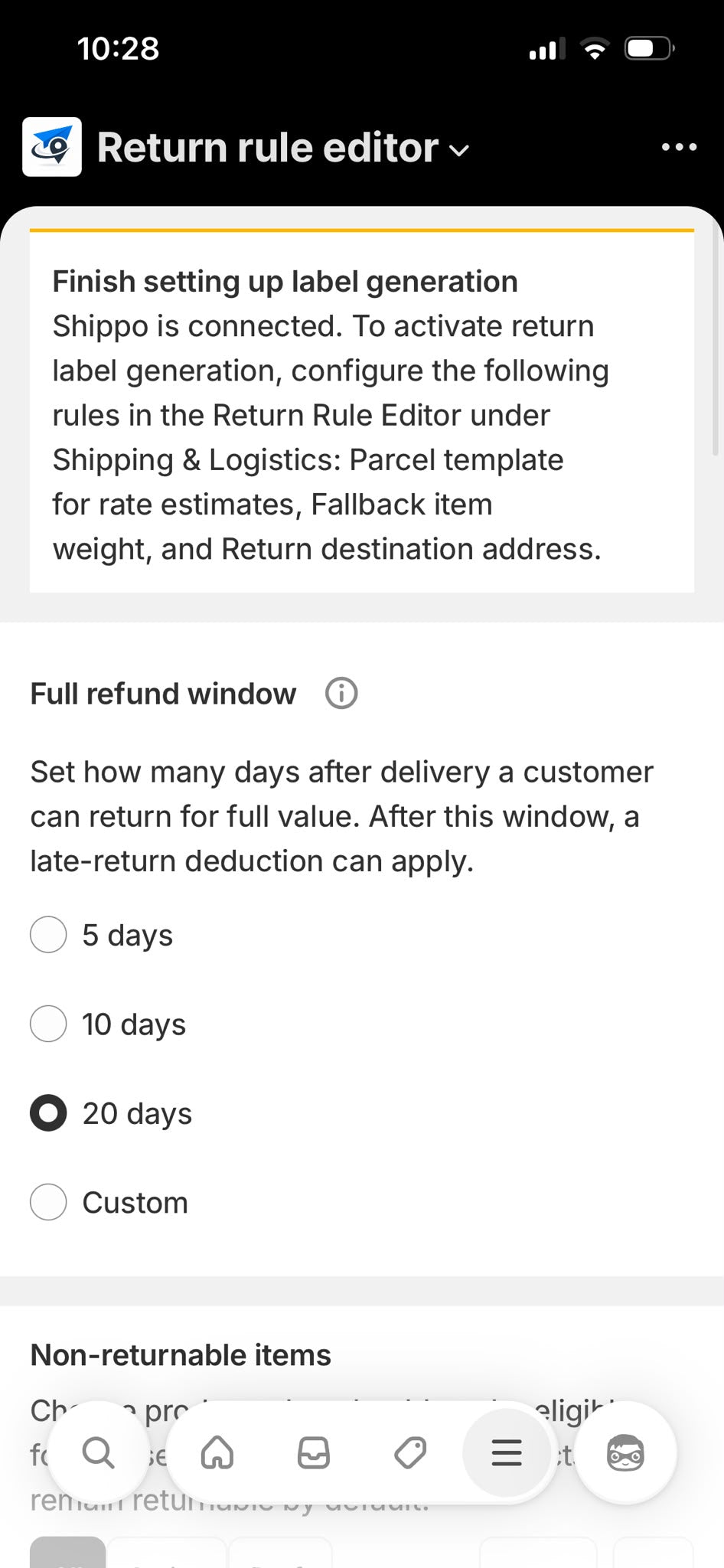

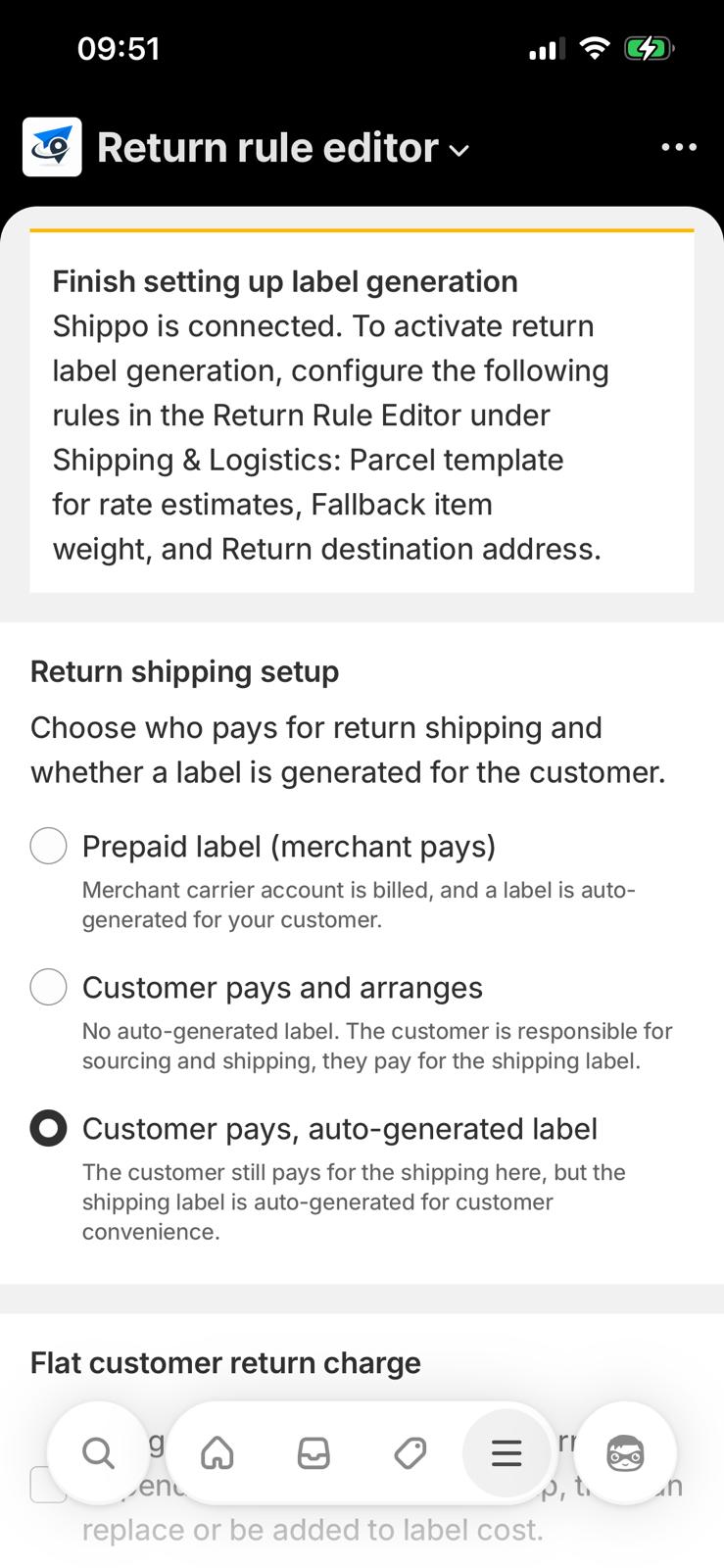

03 / Return policies

Configure the standard return journey

Merchants define return windows, product eligibility, resolution options, and restocking fees.

The technical build

Behind the workflow. Inside the build.

I built CasePilot across the customer portal, embedded merchant app, and backend, connecting return policies and case management with Shopify store data.

React · Interface
Polaris · Components
Gadget · Backend
Shopify APIs · Store data
Next.js · Proxy

One system, two workspaces

Conceptual architecture

Customer

Returns portal

Order lookup · Return request

Return requests

Merchant

Embedded app | Case console

React + Shopify Polaris + Next.js

Case & policy actions

Gadget backend

Application data & business logic

Return policies
Cases & tasks
Team assignment

Shopify API integration

Shopify

Orders · Customers · Products

01 /
Shopify integration
Connect the return workflow to store records, giving each request the order, customer, and product context it needs.
02 /
Configurable policies
Translate merchant settings into return rules: eligibility windows, product restrictions, resolution options, and fees.
03 /
Case workflows
Bring the request, its ownership, and the work required to resolve it together through cases, teams, and tasks defined by the merchant.

Data & relationships

A case connects the moving parts.

The return provides context. The case brings together responsibility, status, and the tasks needed to move the request forward.

Simplified relationship model

Return request

linked to ↓

Case

assigned to ↓

related work ↓

Team

Tasks

Inside the logic

Turning policy into a decision.

A focused code excerpt makes the implementation tangible. Here, a return-window check demonstrates how a merchant setting can influence request eligibility.

Return-window check Illustrative pseudocode

// Apply the configured return window
const elapsedDays = daysBetween(
  eligibilityStart,
  requestedAt
);

if (elapsedDays > policy.windowDays) {
  return {
    eligible: false,
    reason: "Outside return window"
  };
}

Key decisions

Why I built it this way

Three choices that shaped CasePilot’s workflows, merchant controls, and Shopify experience.

Give each return a clear owner
Returns that need follow-up benefit from a shared case, with an assignee, status, and tasks.
The choice

Organise returns around a case workflow.
Trade-off: more workflow structure for the merchant to manage.

Ownership, status, and next steps in one place.
Make return policies configurable
Merchants need controls that reflect how their store handles returns.
The choice

Expose return windows, eligibility, and resolution options in a rule editor.
Trade-off: flexibility adds configuration complexity.

Merchant controls with clear, focused inputs.
Keep the workspace inside Shopify
Return management can sit alongside the merchant’s existing store operations.
The choice

Build an embedded app with Shopify Polaris.
Trade-off: the experience must fit Shopify’s platform constraints.

A familiar home for the merchant workflow.
